Jovision
jvs nd6606 hd r2 6ch h 265 1 sata nvr
JVS-ND6606-HD
GH₵1,980.00
1 / 1 Tap or click to enlarge
JovisionDVRs & NVRs

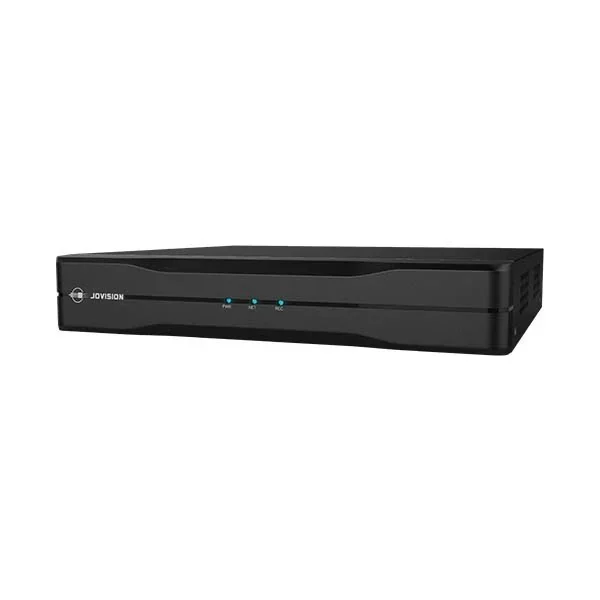

jvs nd6616 hd r2 16ch h 265 1 sata nvr
Model: JVS-ND6616-HD
At a glance
- Power Supply: DC 12V
- Working Humidity: 10 % ~ 90 %
- Smart Phone: iPhone, Android
- Consumption: ≤ 10 W (Without HDD)
Save this product for later
Sold by Maxibern Technologies
Product overview
Key Features: Supports 16Ch 5.0Megapixel IP Camera Adopt the new Vstar GUI , easy to operate and run smoothly Support intelligent coding VSMart, greatly reducing storage space Improved compatibility for hard disks, and up to 10TB Support Intelligent Detection and Human Detection
Before you order
Check the camera or recorder technology, power requirements and supported connections for your installation. Recording storage, cables and installation are included only when listed.
Key features
- Power Supply: DC 12V
- Working Humidity: 10 % ~ 90 %
- Smart Phone: iPhone, Android
- Consumption: ≤ 10 W (Without HDD)
Specifications
| Brand | Jovision |
|---|---|
| Model | JVS-ND6616-HD |
| Power Supply | DC 12V |
| Working Humidity | 10 % ~ 90 % |
| Smart Phone | iPhone, Android |
| Consumption | ≤ 10 W (Without HDD) |
| Dimensions | 260*48*227mm |
| Weight | ≤ 1.0kg (Without HDD) |
| IP Camera Input | 16Channel |
| Audio Input/ Output | 1 Channel Output, RCA; 16Channel Audio output through HDMI |
| Interface | 1 RJ-45 port (10/100Mbps) |
| Resolution | 16Ch 5.0MP/4.0MP/1080P/960P/720P |
| Multi-screen Display | 4/5/6/7/8/9/10/11/12/13/14/15/16 |
| OSD | Camera Name & Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number |
| Compression | H.265/H.264 |
| Record Mode | Manual, Schedule, MD |
| Trigger Events | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection | Motion Detection, No Video Detection |
| Sync Playback | 1ch 5.0MP, 1ch 4.0MP, 1ch 3.0MP,2ch 1080P |
| Search Mode | Channel number / recording type / date |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Backup Mode | FAT32 USB Device/Network |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP |
| SATA | 1 SATA interfaces |
| Capacity | up to 10TB |
| Max Decoding | 16ch@ 5.0MP/4.0MP/1080P/960P/720P 25fps |
| Display - Interface | 1 HDMI, 1 VGA |
| Display - Resolution | HDMI: 2560X1440,1920×1080,1440×900,1280×1024,1280×720,1024×768 VGA: 1920×1080,1440×900,1280×1024,1280×720,1024×768 |
| Recording - Resolution | 16Ch 5.0MP/4.0MP/1080P/960P/720P |
| Recording - Video Detection | Motion Detection, No Video Detection |
| Network - Interface | 1 RJ-45 port (10/100Mbps) |
