HikvisionDVRs & NVRs

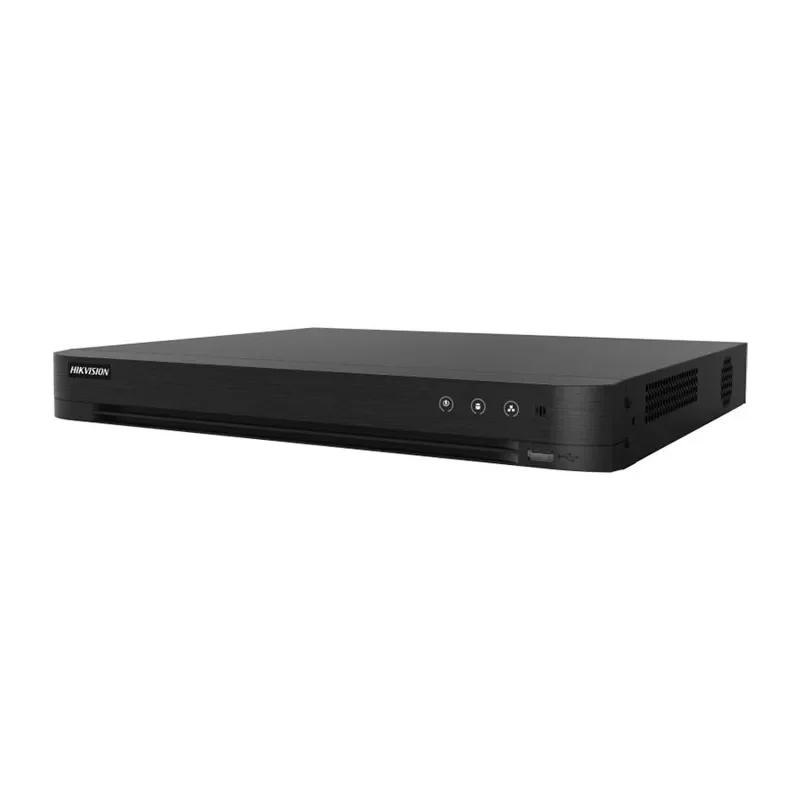

Hikvision DVR 8-Ch 5.0MP Two Hard Drives POC

At a glance

  • 8 channels and 2 HDDs 1U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 12 network cameras can be connected
Explore specifications & details
Save this product for later

Sold by Maxibern Technologies

Product overview

Recording

Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,

Frame Rate Main stream: When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p @15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),

Video Bit Rate 32 Kbps to 6 Mbps

Dual Stream Support

Stream Type Video, Video & Audio

Audio Compression G.711u

Audio Bit Rate 64 Kbps

Video And Audio

IP Video Input 4-ch (up to 12-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

AHD Input 4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI Input1080p25, 1080p30, 720p25, 720p30

CVBS Input PAL/NTSC

Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback 8-ch

HDTVI Input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1/P, channel 1/2 of DS-7208HQHI-K2/P, and channel 1/2/3/4 of DS-7216HQHI-K2/P.

VGA/HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

PoC Camera InputSupport Hikvision PoC camera *: PoC access capability see Appendix.

CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),resolution: PAL: 704 × 576, NTSC: 704 × 480

Network

Remote Connections 64

Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

SATA2 SATA interfaces

Capacity Up to 10 TB capacity for each disk

Alarm In/Out N/A

USB Interface 2 × USB 2.0

Serial Interface RS-485 (half-duplex)

Before you order

Check the camera or recorder technology, power requirements and supported connections for your installation. Recording storage, cables and installation are included only when listed.

Key features

  • 8 channels and 2 HDDs 1U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 12 network cameras can be connected
  • Transmits both HDTVI video and power over the same coaxial cable
