HikvisionSecurity Cameras

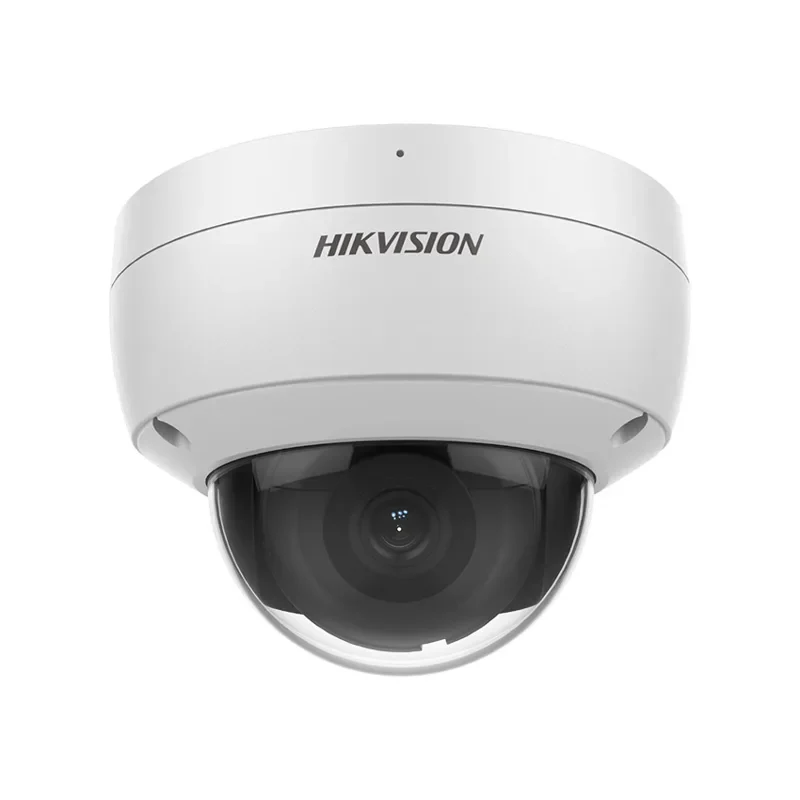

Hikvision 6MP IP Dome AcuSense Camera

At a glance

  • High quality imaging with 6 MP resolution
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Built-in microphone for real-time audio security
Explore specifications & details
Save this product for later

Sold by Maxibern Technologies

Product overview

Camera

Image Sensor 1/2.4″ Progressive Scan CMOS

Max. Resolution 3200 × 1800

Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Time 1/3 s to 1/100,000 s

Day & Night IR cut filter

Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Lens Type Fixed focal length, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°;

4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

Lens Mount M12

Iris Type Fixed

Aperture F1.6

DORI

DORI

2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m;

4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator

Supplement Light Type IR

Supplement Light Range Up to 30 m

Smart Supplement Light Yes

IR Wavelength 850 nm

Audio

Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering Yes

Network

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View Up to 6 channels

API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host Up to 32 users. 3 user levels: administrator, operator and user

Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client iVMS-4200, Hik-Connect, Hik-Central


Image Parameters Switch Yes

Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Day/Night Switch Day, Night, Auto, Schedule

Wide Dynamic Range (WDR) 120 dB

SNR≥ 52 dB

Image Enhancement BLC, HLC, 3D DNR

Privacy Mask 4 programmable polygon privacy masks

Interface

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-In Microphone Yes

Reset Key Ye

Before you order

Check the camera or recorder technology, power requirements and supported connections for your installation. Recording storage, cables and installation are included only when listed.

Key features

  • High quality imaging with 6 MP resolution
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Built-in microphone for real-time audio security
  • Water and dust resistant (IP67) and vandal-resistant (IK10)
