HikvisionCCTV Accessories

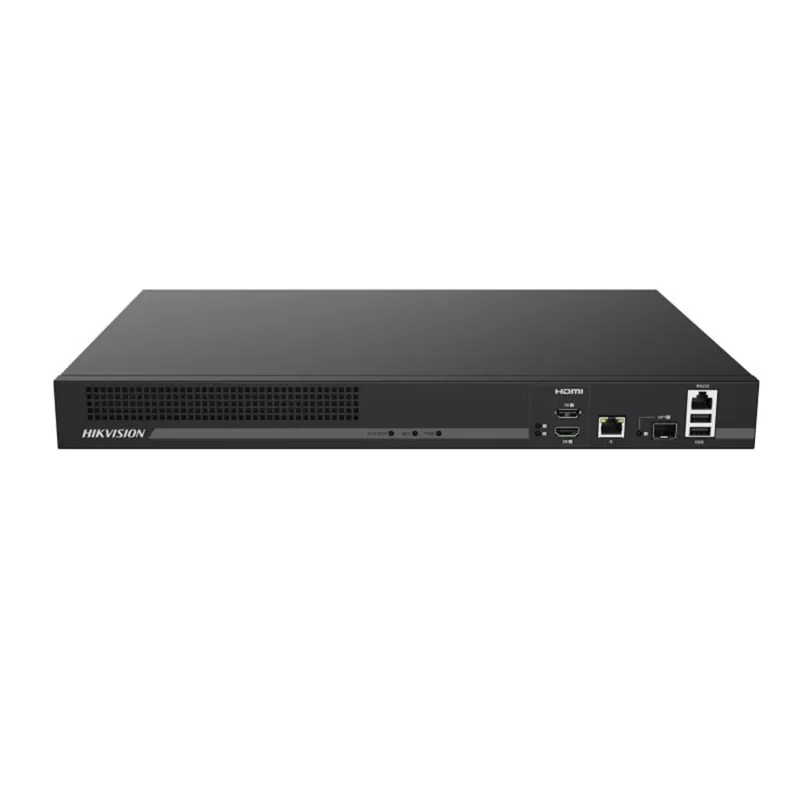

Hikvision 4K Video Decoder

At a glance

  • Video Input
  • Supports the video input from the computers and video conference terminals, and 4K HDMI signal input.
  • Supports using network cameras, NVRs, and other devices as network signal sources.
  • Supports embedded HDMI audio input. The audio input supports 16 bit, 48 KHz or 32 KHz sampling rate, dual audio channel, and stereo.
  • Supports signal input via the HDMI 1.4 port, 2 channels of 1080p@50/60 Hz input, or 1 channel of 4K@30 Hz input.
Explore specifications & details
Save this product for later

Sold by Maxibern Technologies

Product overview

Video Input

Supports the video input from the computers and video conference terminals, and 4K HDMI signal input.

Supports using network cameras, NVRs, and other devices as network signal sources.

Supports embedded HDMI audio input. The audio input supports 16 bit, 48 KHz or 32 KHz sampling rate, dual audio channel, and stereo.

Supports signal input via the HDMI 1.4 port, 2 channels of 1080p@50/60 Hz input, or 1 channel of 4K@30 Hz input.

Video Output

Supports signal output via the HDMI 1.4 port, and 4K (3840 × 2160@30 Hz) UHD video output.

Supports embedded HDMI audio output and external audio output.

Adopts frame synchronization technology to ensure that the images of all HDMI output ports are completely synchronized, with complete picture and smooth playback, and without lag, frame loss, tearing, or splicing.

Supports the maximum LED loading capacity of 2.6 MP per port.

Video Encoding and Decoding

Supports H.264 encoding format (the default), H.265 encoding formats, sub-stream encoding, and main stream encoding.

Supports decoding the network cameras, NVRs and other network sources, decoding sub-stream and main stream, and auto-switching to sub-stream when the window division reaches the threshold.

Provides 64 video decoding channels and supports simultaneously decoding 32 channels of 2 MP video or 64 channels of 720p video to the video wall.

Supports decoding streams of no more than 32 MP resolution.

Supports the mainstream decoding formats such as H.264, H.265, Smart264, Smart265, MJPEG, and HIK264, and mainstream encapsulation formats such as PS, TS, ES, and RTP.

Supports audio decoding of G.722, G.711A, G.726, G.711U, MPEG2-L2, AAC, MP3, and PCM.

Supports rotate mode decoding of front-end camera videos that are of no more than 2560 × 1440 resolution.

Supports active decoding and passive decoding.

Supports decoding the encrypted stream, multi-channel stream, and smart stream, editing and switching stream, and prompting for decoding exceptions.

Supports decoding the recorded video files to the video wall.

Video Wall Function

Supports splicing signal sources on the video wall, opening the signal source window, and performing signal source window roaming, scene switching, and window switching. Each screen supports four 1080p signal source windows or two 4K signal source windows.

Each signal source window can be divided into 1, 2, 4, 6, 8, 9, 12, 16, 25, and 36 windows.

Supports up to 64 scenes. You can customize the video wall layout and save it as a sce

Before you order

Check the exact model and listed specifications before ordering. Choose delivery or scheduled collection at checkout; your order page shows the estimated date.

Key features

  • Video Input
  • Supports the video input from the computers and video conference terminals, and 4K HDMI signal input.
  • Supports using network cameras, NVRs, and other devices as network signal sources.
  • Supports embedded HDMI audio input. The audio input supports 16 bit, 48 KHz or 32 KHz sampling rate, dual audio channel, and stereo.
  • Supports signal input via the HDMI 1.4 port, 2 channels of 1080p@50/60 Hz input, or 1 channel of 4K@30 Hz input.
  • Video Output
