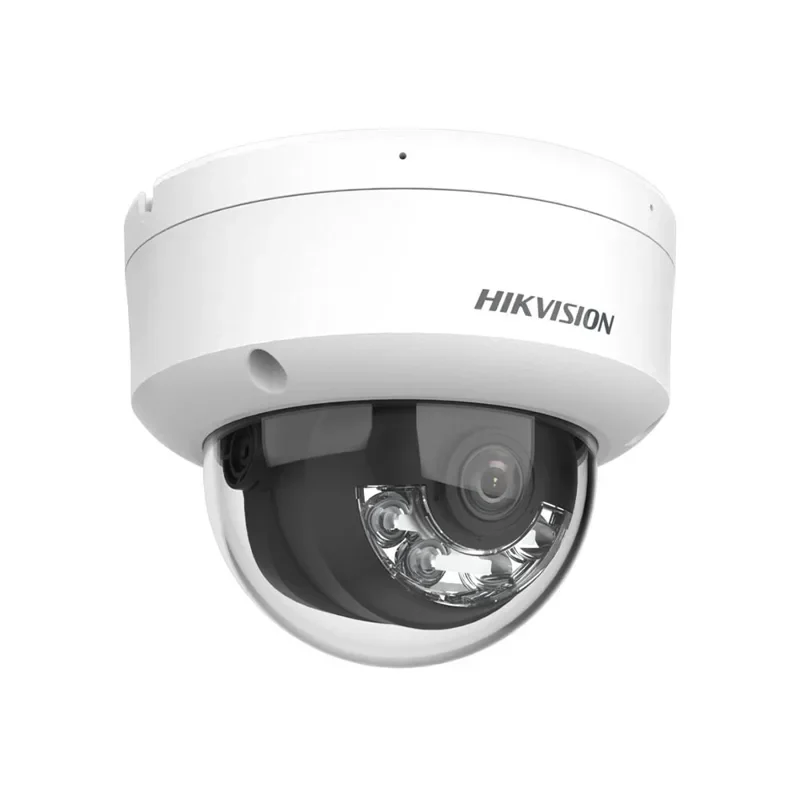

Hikvision 4 MP Smart Hybrid Light Fixed Dome Network Camera

Camera

Image Sensor 1/3″ Progressive Scan CMOS

Max. Resolution 2560 × 1440

Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time1/3 s to 1/100,000 s

Day & Night IR cut filter

Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

Lens Type Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°

4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°

Lens Mount M12

Iris Type Fixed

Aperture F1.6

DORI

DORI

2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m

4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type IR,White Light

Supplement Light Range Up to 30 m

Smart Supplement Light Yes

IR Wavelength 850 nm

Video

Main Stream

50 Hz:

20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate 32 Kbps to 8 Mbps

H.264 Type Baseline Profile,Main Profile,High Profile

H.265 Type Main Profile

Bit Rate Control CBR,VBR

Region of Interest (ROI) 1 fixed region for main stream

Audio

Audio Type Mono sound

Environment Noise Filtering Yes

Audio Sampling Rate 8 kHz/16 kHz

Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live ViewUp to 6 channels

API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK

Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Client iVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)120 dB

SNR ≥ 52 dB

Day/Night Switch Day, Night, Auto, Schedule

Image EnhancementBLC,HLC,3D DNR

Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privac

Before you order

Check the camera or recorder technology, power requirements and supported connections for your installation. Recording storage, cables and installation are included only when listed.

Key features

• High quality imaging with 4 MP resolution
• Support Human and Vehicle Detection
• Smart Hybrid Light: advanced technology with long range
• Built-in microphone for real-time audio security
• Efficient H.265+ compression technology
