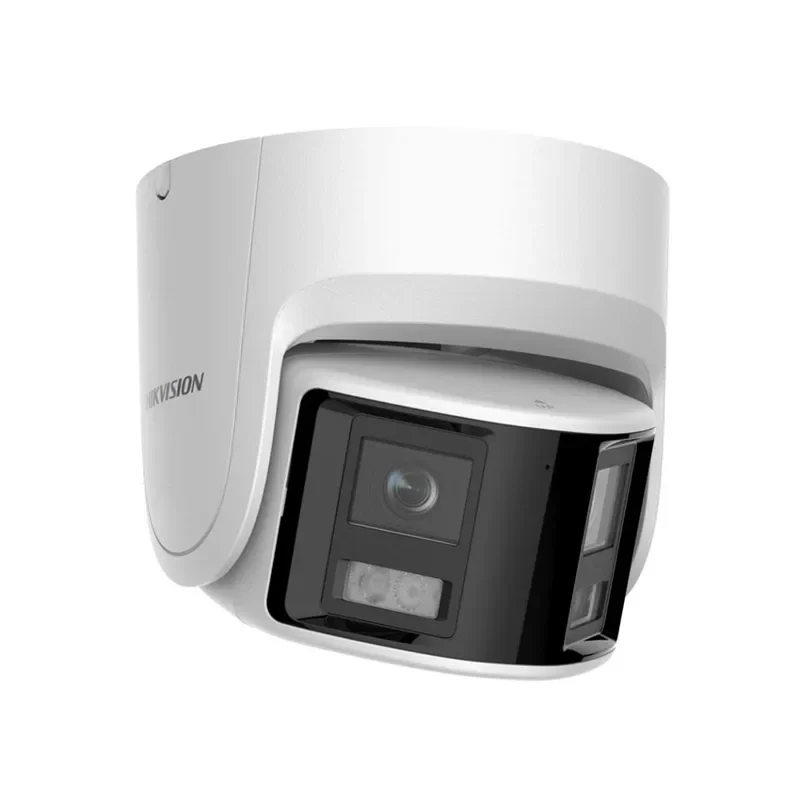

Hikvision 4 MP Panoramic ColorVu Fixed Turret Network Camera

At a glance

  • High quality imaging with 4 MP resolution
  • One image that presents all the scenes covered by the camera
  • 24/7 colorful imaging
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 130 dB WDR technology
Explore specifications & details
Save this product for later

Sold by Maxibern Technologies

Product overview

Camera

Image Sensor2 × 1/2.5″ Progressive Scan CMOS

Max. Resolution3040 × 1368

Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time1/3 s to 1/100,000 s

Angle AdjustmentPan: -30° to 30°,tilt: -75° to 75°

Lens

Lens TypeFixed focal lens, dual lens, 2.8 mm

Focal Length & FOV2.8 mm, horizontal FOV: 180°, vertical FOV: 81°

Lens MountM12

Iris TypeFixed

ApertureF1.0

Depth Of Field2 m to ∞

DORI

DORI2.8 mm, D: 38 m, O: 15 m, R: 7.5 m, I: 3.5 m

Illuminator

Supplement Light TypeWhite Light

Supplement Light RangeUp to 30 m

Smart Supplement LightYes

Video

Main Stream

50 Hz: 25 fps (3040 × 1368)

60 Hz: 24 fps (3040 × 1368)

Sub-Stream

50 Hz: 25 fps (1200 × 536, 960 × 432)

60 Hz: 24 fps (1200 × 536, 960 × 432)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 8 Mbps

H.264 TypeBaseline Profile,Main Profile,High Profile

H.265 TypeMain Profile

Bit Rate ControlCBR,VBR

Scalable Video Coding (SVC)H.264 and H.265 encoding

Region Of Interest (ROI)1 fixed region(s) for main stream

Audio

Audio TypeMono sound

Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise FilteringYes

Network

ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets

Simultaneous Live ViewUp to 6 channels

APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

ClientiVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Before you order

Check the camera or recorder technology, power requirements and supported connections for your installation. Recording storage, cables and installation are included only when listed.

Key features

  • High quality imaging with 4 MP resolution
  • One image that presents all the scenes covered by the camera
  • 24/7 colorful imaging
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 130 dB WDR technology
  • Focus on human and vehicle classification based on deep learning
