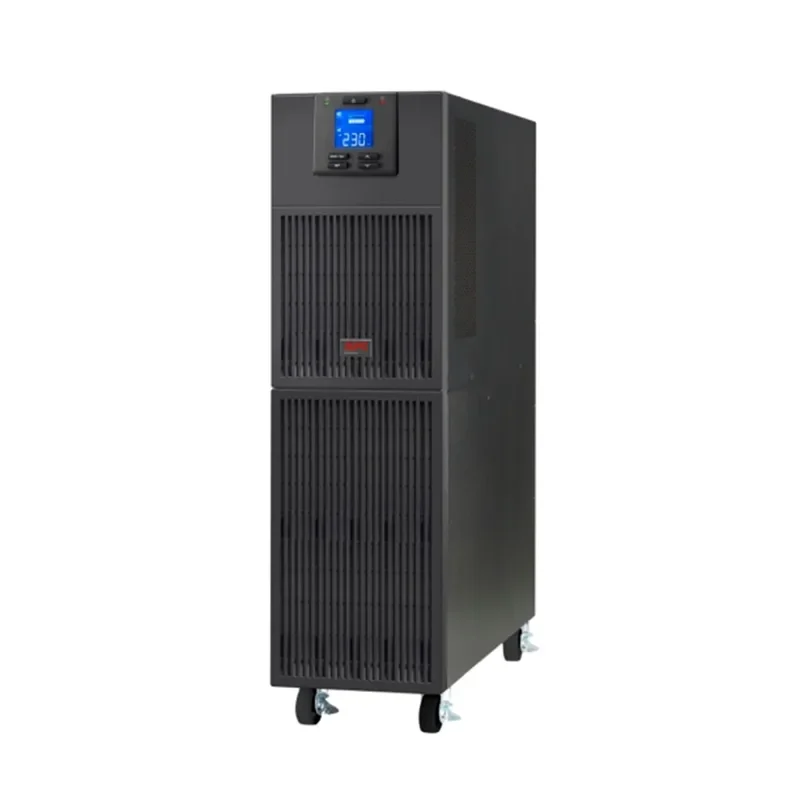

APC Easy UPS On-Line SRV 10000VA 230V

Manageability

SmartSlot

Customize UPS capabilities with management cards.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Network manageable

Provides remote power management of the UPS over the network.

Serial connectivity

Provides management of the UPS via a serial port.

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Availability

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Features

High efficiency

High efficiency rates that remain stable even at lower operating power levels

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Management Software

Allows you to easily monitor your utility power and manage your UPS.

SmartSlot

Customize UPS capabilities with management cards.

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Wide input voltage range

Designed for harsh electrical environments to save battery life.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

Main Input Voltage

230 V

Main Output Voltage

230 V

rated power in VA

10000 VA

output connector type

Hard wire 3-wire (H N + E) 1

provided equipment

Basic UPS signalling RS-232 cable

CD with software

User manual

USB cable

Physical

colour

Black

height

68.5 cm

width

19 cm

depth

44.7 cm

net weight

65 kg

mounting location

Front

mounting preference

No preference

mounting mode

Not rack-mountable

USB compatible

Yes

mounting position

Vertical

Input

input voltage limits

110-300 V half load

176-300 V full load

number of input connectors

1 hard wire 3-wire (1P + N + E)

network frequency

40-70 Hz auto sensing

Output

Maximum configurable power in W

10000 W

output frequency

50/60 Hz +/- 3 Hz sync to mains

harmonic distortion

1 %

UPS type

Double conversion online

Wave type

Sine wave

effici

Before you order

Check the exact model and listed specifications before ordering. Choose delivery or scheduled collection at checkout; your order page shows the estimated date.

Key features

• High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
